Industrial engines

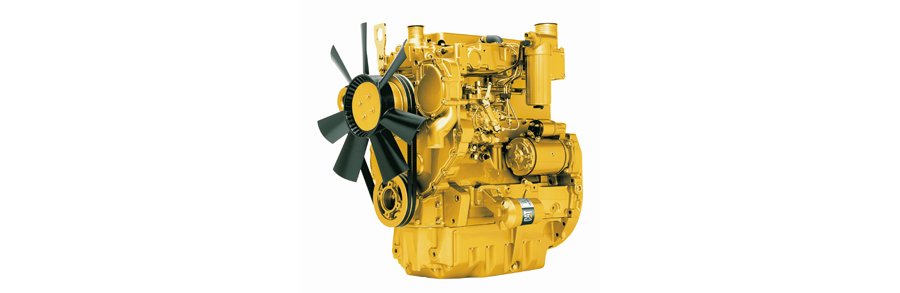

3054C

The Cat® 3054C Industrial Diesel Engine is offered in ratings ranging from 52-97 bkW (69.7-130 bhp) @ 2000-2400 rpm. These ratings meet U.S. EPA Tier 2 equivalent and EU Stage II equivalent emission standards and are available for other regulated and non-regulated areas. Industries and applications powered by 3054C engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.

Have questions about this product?
Request a Quote
800.768.4200
Power Rating
Maximum Power 130 hp
Maximum Torque 369 lb-ft @ 1400 rpm
Rated Speed 2200-2400 rpm
Minimum Power 69.7 hp
Emission Standards
Emissions U.S. EPA Tier 2 Equivalent, EU Stage II Equivalent
General
Engine Configuration Inline 4, 4-Stroke-Cycle Diesel
Bore 4.1 in
Stroke 5 in
Displacement 269 in³
Compression Ratio 16.2:1
Aspiration Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Aftertreatment -
Engine Dimensions - Approximate
Length 26.1 in
Width 24.4 in
Height 31.9 in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 674.6 lb

Air Inlet System

  • Inlet manifold with choice of inlets.

Control System

  • Alternator
  • Starter motor
  • Control Panel
  • Glow plug starting aid

Cooling System

  • Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
  • 50:50 water glycol mix

Flywheels and Flywheel Housing

  • SAE No. 3 flywheel housing
  • Flywheel and starter rings

Fuel System

  • Fuel filter positions

Lube System

  • Lubricating oil filters and breathers
  • Oil filter positions
  • Lube oil sump

Power Take Off

  • SAE B Power Take Off (PTO)

General

  • Timing case and gear-driven auxiliaries
  • Belt-driven auxiliaries
  • Engine mountings
  • Gauges
  • Displays
  • Power and torque curve tailoring
  • Paint: Caterpillar yellow, with optional colors available at request
