Auxiliary engines

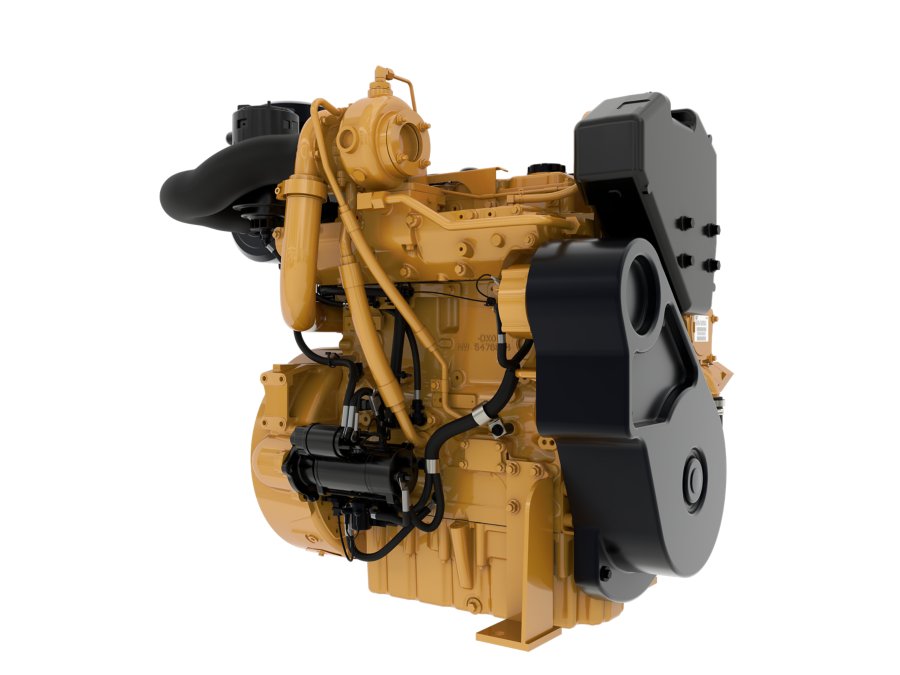

C4.4 (Electronic)
C4.4 (Electronic Control System)
Request a Quote
Have questions? Call 800.768.4200
Easy to use
- Simplicity = Reliability
- Configure the engine how you want it, package it yourself
- Compact engine profile with high power density
- Ease of repower with multiple cooling system options: Single circuit keel cooling /Separate circuit keel cooling / Heat exchanger
- Clean, smooth, and quiet operations
- Advanced fuel system provides excellent fuel consumption and low smoke
- Proven core engine design with millions of operating hours
- Fewer maintenance touchpoints and longer service intervals
- Global dealer network for unparalleled support
| Rated Engine Speed | 1500 / 1800 rpm |
|---|---|
| Bore | 4.13 in |
| Stroke | 5.0 in |
| Displacement | 268 in³ |
| Aspiration | Turbocharged - Aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW)) |
| Governor | Electronic (A5 ECM) |
| Configuration | In-line 4, 4-stroke-cycle diesel |
| Refill Capacity | Lube Oil System w/Oil filter change: 11 L 2.8 gal) |
| Oil Change Interval | 500 hours |
| Cooling | Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling |
| Rotation from Flywheel End | Counterclockwise |
| Emissions | U.S. EPA Tier 3, EU Stage V, China II |
| Flywheel Housing | SAE No. 03 with SAE 11.5 flywheel (126 teeth) |
| Length | 33.7 in |
|---|---|
| Height | 40.9 in |
| Minimum Width | 30.6 in |
| Maximum Width | 32.0 in |
| Minimum Engine Dry Weight | 1200.0 lb |
| Maximum Engine Dry Weight | 1278.0 lb |
| Power Range | 71 - 129 bkW |
|---|
| Frequency | 50 / 60 |
|---|
COOLING SYSTEM
- Gear-driven jacket-water and auxiliary water pumps
- Engine mounted air cleaner and expansion tank
- Integral plate-type oil cooler
EXHAUST SYSTEM
- Watercooled exhaust manifold and turbocharger
FUEL SYSTEM
- Common Rail fuel system
- Electric fuel priming pump
GENERAL
- Internal engine balancing shaft
- Self-tensioning multi-vee belt drive
LUBE SYSTEM
- Open crankcase ventilation system
MOUNTING SYSTEM
- Engine mounted fuel and oil filter
- Engine mounted customer interface and control relays
STARTING SYSTEM
- 12V or 24V starter motor
Need installed dimensions with enclosure and tank? See Model Configurations
