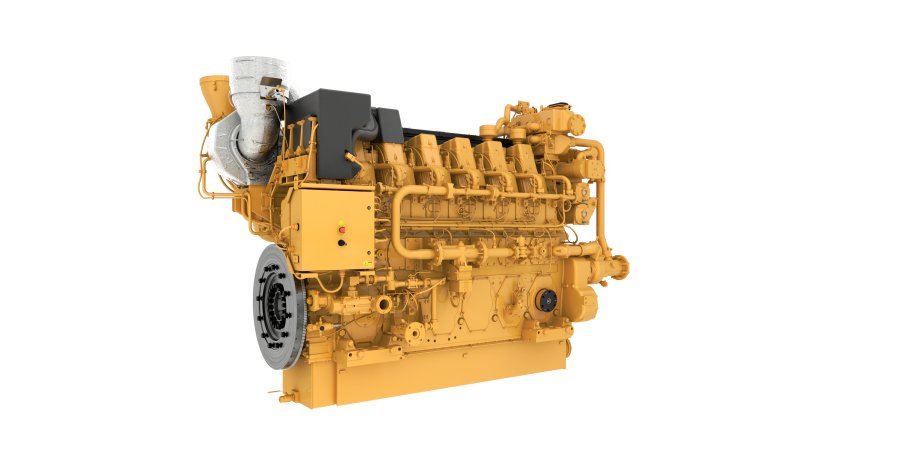

G3606 A4
G3600 ADEM™4 engines provide a wide range of power options to fit your gas compression application. G3600 ADEM™4 engines bring the highest uptime in the industry and long operating intervals between overhaul. Operators that use G3600 ADEM™4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 ADEM™4 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3606 ADEM™4 Gen 1 gas engine with standard ratings: 1398 bkW (1875 bhp) @ 1000 rpm and ADEM™4 Gen 2 gas engine standard ratings: 1454 bKW (1950 hp) and uprated ratings - 1499 bKW (2010 bhp) @ 1000 rpm. NSPS site compliant capable.
Emissions
- Meets U.S. EPA Spark Ignited Stationary NSPS Emissions for 2010 with the use of an oxidation catalyst
Lean Burn Engine Technology
- Lean-burn engines operate with large amounts of excess air. The excess air absorbs heat during combustion reducing the combustion temperature and pressure, greatly reducing levels of NOx. Lean-burn design also provides longer component life and excellent fuel consumption.
Ease of Operation
- Includes engine mounted thermostats, compress oil cooler connections, jacket water and lube oil heater connections.
Advanced Digital Engine Management
- ADEM4 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM4 has improved: user interface, display system, shutdown controls, and system diagnostics.
Gas Engine Rating Pro
- GERP is a web-based program designed to provide site performance capabilities for Cat® natural gas engines for the gas compression industry. GERP provides engine data for your site's altitude, ambient temperature, fuel, engine coolant heat rejection, performance data, installation drawings, spec sheets, and pump curves.https://gerp.cat.com
Product Support Offered Through Global Cat Dealer
- More than 2,200 dealer outlets Cat factory-trained dealer technicians service every aspect of your petroleum engine Cat parts and labor warranty Preventive maintenance agreements available for repairbefore-failure options S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine:
- Internal engine component condition
- Presence of unwanted fluids
- Presence of combustion by-products
- Site-specific oil change interval
Aftermarket Upgrade Kits
Over 80 Years of Engine Manufacturing Experience
- Over 80 years of natural gas engine production Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products
- Cast engine blocks, heads, cylinder liners, and flywheel housings
- Machine critical components
- Assemble complete engine
Website
- For all your petroleum power requirements, visit www.cat.com/oilandgas
Enhanced Performance
Increased horsepower boosts production while optimized uptime maximizes efficiency. Extended overhaul intervals help keep operations running longer with lower service demands.
Reduced Emissions
Lower GHG, methane, and VOC output with flexible 0.3 or 0.5 g/bhp-h NOx ratings. Integrated CCV further reduces methane emissions to support cleaner, more sustainable compression.
Simplified Reliability
Unchanged footprint ensures seamless packaging integration, supported by Dealer Network offering flexible service and customizable solutions to keep your engine performing.
| Maximum Rating | 2065 BHP |
|---|---|
| Rated Speed | 1000 rpm |
| Emissions | Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.3 g and 0.5 g/bhp-hr NOx |
| Minimum Rating | 1900 BHP |
| Compression Ratio | 9.2:1 Gen 1 (7:6:1 Gen 2) |
| Aspiration | Turbocharged-Aftercooled |
| Rotation from Flywheel End | Counterclockwise |
| Displacement | 7762.0 in³ |
| Flywheel Teeth | 255 |
| Oil Change Interval | 5000 hours |
| Ignition, Protection | Electronic (ADEM™ A4) |
| Stroke | 11.8 in |
| Bore | 11.8 in |
| Length | 167.33 in |
| Width | 86.17 in |
| Height | 116.16 in |
| Weight - Dry | 36883.0 lb |
| Cooling System | 124.0 gal (US) |
|---|---|
| Lube Oil System - Refill | 187.0 gal (US) |
Air Inlet System
- Air cleaners
- Air Inlet Adapter
Control System
- ADEM4
Cooling System
- ANSI Class 150 4 inch Flange (outlet water connection)
- ANSI Class 150 6 inch Flange (Inlet Water connection)
- Engine driven Water pump
- Water Jacket Outlet Regulator 88° C
Engine Rating
- Engine rating and speed selection
Exhaust System
- Hard heat shielded exhaust manifold
- Vertical exhaust outlet
Flywheel and Flywheel Housing
- Flywheel. SAE Standard
Fuel System
- ANSI Class 150 2 inch Flange ( Customer Connect)
- Fuel Filter
- Gas pressure regulator
General
- Paint
- Wood Skid
Insrumentation
- Basic HMI Engine Interface
Lube System
- Oil pan
- Oil filter
- Oil supply line
- Breathers
- Closed Crankcase Ventilation System
- Engine Driven oil pump
- Front and Rear Oil Drains
- Prelube Pump
Mounting System
- Engine mounting feet (4)
- Two lifting eyes
Power Take-offs
- Damper Guard
- Single Damper
Protection System
- Crankcase explosion relief valve
Starting System
- Engine Barring Device
- Starting Motor
Need installed dimensions with enclosure and tank? See Model Configurations
