Gas compression engines

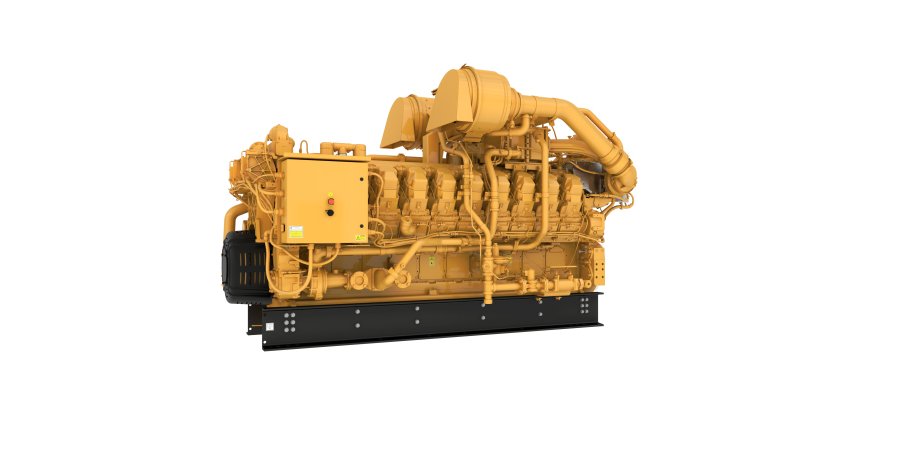

G3520J
The line of G3520J engines brings versatility, uptime, and low operating cost to your gas compression operation. They deliver the lowest engine-out emissions in the industry without sacrificing performance. Ideal applications for G3520J engines include primary gathering, central gathering, and gas processing plants.
Request a Quote
Have questions? Call 800.768.4200
Engine Design
- Built on G3500 LE proven reliability and durability
- Ability to burn a wide spectrum of gaseous fuels
- Robust diesel strength design prolongs life and lowers owning and sdfsoperating costs
- Broad operating speed range at lower site air density (high altitude/ sdfshot ambient temperatures)
- Higher power density improves fleet management
- Quality engine diagnostics
- Detonation-sensitive timing control for individual cylinderst temperatures)
Ultra Lean Burn Technology (ULB)
- Lowest engine-out emissions
- Highest fuel efficiency
- Improved altitude and speed turndown
- Stable load acceptance and load rejection
Emissions
- Meets U.S. EPA Spark Ignited Stationary NSPS emissions for 2010 and some non-attainment areas
- Lean air/fuel mixture provides best available emissions and fuel efficiency for engines of this bore size
Advanced Digital Engine Management
- ADEM A3 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM A3 has improved: user interface, display system, shutdown controls, and system diagnostics.
Full Range of Attachments
- Large variety of factory-installed engine attachments reduces packaging time
Testing
- Every engine is full-load tested to ensure proper engine performance
Gas Engine Rating Pro
- GERP is a web-based program designed to provide site performance capabilities for Cat® natural gas engines for the gas compression industry. GERP provides engine data for your site’s altitude, ambient temperature, fuel, engine coolant heat rejection, performance data, installation drawings, spec sheets, and pump curves.
Product Support Offered Through Global Cat Dealer
- More than 2,200 dealer outlets
- Cat factory-trained dealer technicians service every aspect of your petroleum engine
- Cat parts and labor warranty
- Preventive maintenance agreements available for repair sdfsbefore-failure options
- S•O•SSM program matches your oil and coolant samples sdfdagainst Caterpillar set standards to determine:-Internal engine component condition-Presence of unwanted fluid-Presence of combustion by-products-Site-specific oil change interval
Web Site
- For all your Oil & Gas power requirements, visit www.cat.com/oilandgas
| Maximum Rating | 1725 BHP |
|---|---|
| Rated Speed | 1400 rpm |
| Emissions | Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.5 g/bhp-hr NOx |
| Minimum Rating | 1680.0 BHP |
| Displacement | 5263 in³ |
| Aspiration | Turbocharged - 2 stage Aftercooled |
| Oil Change Interval | 2000 hours |
| Flywheel Teeth | 183 |
| Length | 162 in |
| Width | 74 in |
| Height | 93 in |
| Weight - Dry | 23776 lb |
| Bore | 6.7 in |
| Rotation from Flywheel End | Counterclockwise |
| Stroke | 7.5 in |
| Combustion | Lean Burn |
| Lube Oil System - Refill | 143 gal (US) |
|---|
| Governor and Protection | Electronic (ADEM™ A3) |
|---|
Air Inlet System
- Axial flow air cleaners
- Air inlet adapter
- Single element canister type with service indicator
Charging System
- Alternator
- Upper RH Accessory Drive
Control System
- ADEM A3 system
- HMI Panel
Cooling System
- Aftercooler thermostats and housing
- Inlet Flange Connection
- Jacket water thermostats and housing
- JW and SCAC engine driven pumps
Exhaust System
- Exhaust Manifold
- Exhaust Outlet
- Exhaust Weld Flange
- Hard Shielded turbine housing and turbine in lines
- Integrated Temperature Sensing Module
Flywheels & Flywheel Housings
- Flywheel housing SAE No. 00
- Flywheel SAE No. 21-double weight
Fuel System
- Electronic fuel metering valve
- Electronic fuel metering valve
- Gas pressure regulator
General
- Paint
Lube System
- Oil Cooler
- Air Prelube Pump
- Crankcase Breathers
- Drain Valve
- Oil Filter, RH
- Oil Pan, capacity 160 gallon
- Oil Sampling Valve
- Turbo Oil Accumulator
Mounting System
- Rails
Power Take-offs
- Accessory Drives
- Crankshaft Pulley
- Damper and Damper Guard
Starting System
- Starter
- Engine Barring Device
Telematics System
- Interconnect Harness
- Interconnect Harness
Need installed dimensions with enclosure and tank? See Model Configurations
