Gas compression engines
G3516 TA

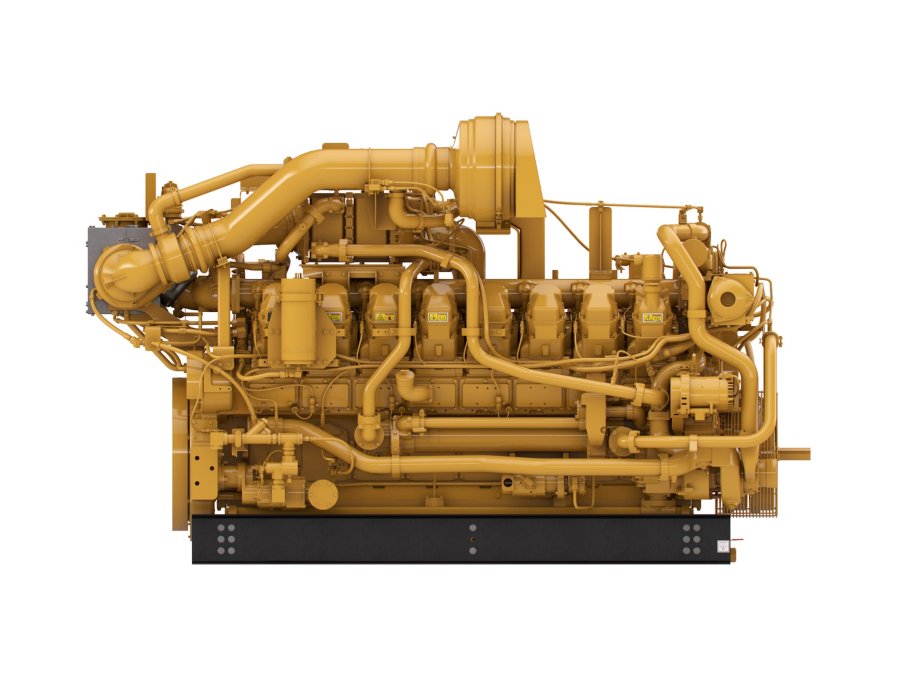

G3516 TA Gas Engine
Request a Quote
Have questions? Call 800.768.4200
Engine Design
- Engine design built on G3500 proven reliability and durability
- Ability to burn a wide spectrum of gaseous fuels
- Robust diesel strength design prolongs life and lowers owning and operating costs
- Broad operating speed range at lower site air densities (high altitude/hot ambient temperatures)
- Higher power density improves fleet management
- Quality engine diagnostics
- Detonation-sensitive timing control for individual cylinders
Emissions
- When configured with customer-supplied air fuel ratio control and three-way catalyst, the engine is capable of meeting NSPS and non-attainment area emissions levels.
Advanced Digital Engine Management
- ADEM A4 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM A4 has improved: user interface, display system, shutdown controls, and system diagnostics.
Full Range of Attachments
- Large variety of factory-installed engine attachments reduces packaging time
Testing
- Every engine is full-load tested to ensure proper engine performance.
Gas Engine Rating Pro
- GERP is a web-based program designed to provide site performance capabilities for Cat® natural gas engines for the gas compression industry. GERP provides engine data for your site's altitude, ambient temperature, fuel, engine coolant heat rejection, performance data, installation drawings, spec sheets, and pump curves.
Product Support Offered Through Global Cat Dealer
- More than 2,200 dealer outlets
- Cat factory-trained dealer technicians service every aspect of your petroleum engine
- Cat parts and labor warranty
- Preventive maintenance agreements available for repair-before-failure options
- S•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine:
- Internal engine component condition
- Presence of unwanted fluids
- Presence of combustion by-products
- Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
- Over 60 years of natural gas engine production. Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
- Cast engine blocks, heads, cylinder liners, and flywheel housings
- Machine critical components
- Assemble complete engine
Web Site
- For all your Oil & Gas power requirements, visit www.cat.com/oilandgas
| Maximum Rating | 1380 BHP |
|---|---|
| Rated Speed | 1400 rpm |
| Emissions | Rich Burn: EPA NSPS Site Compliant Capable with Caterpillar Supplied AFRC and Customer Supplied Aftertreatment |
| Minimum Rating | 660.0 BHP |
| Bore | 6.7 in |
| Stroke | 6 in |
| Displacement | 69 in³ |
| Length | 143.8 in |
| Width | 77.7 in |
| Height | 89.9 in |
| Weight - Dry | 20352 lb |
Air Inlet System
- Intermediate duty air cleaner with service indicator
- Rain shield
Cooling System
- Two-stage charge air cooling: First stage — JW + 1st stage AC; Second stage — OC + 2nd stage AC
- Engine cooling and charge air cooling thermostats
- Jacket water pump, gear driven, centrifugal, non-self-priming
- Atercooler water pump, gear driven, centrifugal, non-self-priming
- Aftercooler with corrosion-resistent stainless steel core
Exhaust System
- Watercooled exhaust manifolds
- Dry turbocharger housing
- Dry exhaust elbow
Flywheels & Housings
- Flywheel, SAE No. 21
- Flywheel housing, SAE No. 00
- SAE standard rotation
Fuel System
- 32 - 35 psig gas supply to engine
- Electronic fuel metering valve
- Gas pressure regulator
- Gas shutoff valve
Instrumentation
- Product Link cellular radio
Lubrication System
- Crankcase breathers - top mounted Oil cooler
- Simplex oil filter - RH
- Shallow oil pan
- Oil sampling valve
- Turbo oil accumulator
Mounting System
- Rails
Power Take-Offs
- Double damper and guard
- Front housing, two sided
- Front lower LH accessory drive
General
- Paint — Cat yellow
- Crankshaft vibration damper and guard
Need installed dimensions with enclosure and tank? See Model Configurations
