Gas compression engines

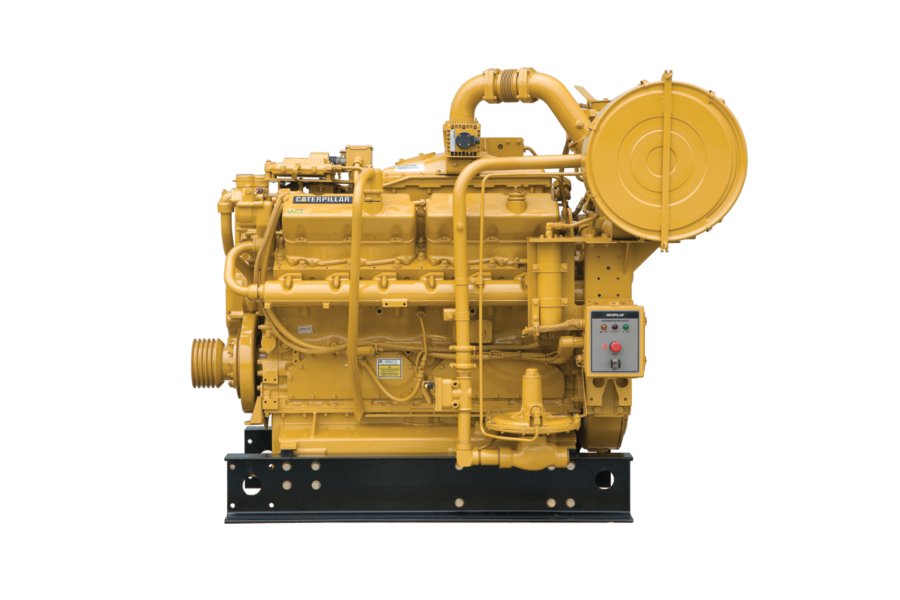

G3412
Tough and durable, built on the industry-standard G3400 platform bring maximum uptime and low operating cost to your operation. G3412 engines meet the most demanding continuous duty gas compression applications with virtually no unscheduled downtime. Ideal applications for G3412 engines include gas lift, gas gathering, and wellhead gas compression. Cat G3412 gas engine. Ratings: 448 bkW (600 bhp) @ 1800 rpm are available for non-regulated areas.
Request a Quote
Have questions? Call 800.768.4200
Engine Design
- Improved reliability and durability
- Ability to burn a wide spectrum of gaseous fuels
- Robust diesel strength design prolongs life and lowers owning and operating costs
- Broad operating speed range
Full Range of Attachments
- Large variety of factory-installed engine attachments reduces packaging time
Testing
- Every engine is full-load tested to ensure proper engine performance
Gas Engine Rating Pro
- GERP is a web-based program designed to provide site performance capabilities for Cat® natural gas engines for the gas compression industry. GERP provides engine data for your site's altitude, ambient temperature, fuel, engine coolant heat rejection, performance data, installation drawings, spec sheets, and pump curves.
Product Support Offered Through Global Cat Dealer
- More than 2,200 dealer outletsCat factory-trained dealer technicians service every aspect of your petroleum engineCat parts and labor warrantyPreventive maintenance agreements available for repairbefore-failure optionsS•O•SSM program matches your oil and coolant samples against Caterpillar set standards to determine:
- Internal engine component condition
- Presence of unwanted fluids
- Presence of combustion by-products
- Site-specific oil change interval
Over 80 Years of Engine Manufacturing Experience
- Over 60 years of natural gas engine productionOwnership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
- Casts engine blocks, heads, cylinder liners, and flywheel housings
- Machines critical components
- Assembles complete engine
Web Site
- For all your petroleum power requirements, visit www.cat.com/oilandgas.
| Maximum Rating | 600.0 BHP |
|---|---|
| Rated Speed | 1800 rpm |
| Emissions | Rich Burn: Standard Emissions for Export Only |
| Minimum Rating | 600.0 BHP |
| Displacement | 1649.0 in³ |
| Compression Ratio | 9.7:1 |
| Aspiration | Turbocharged - Aftercooled |
| Rotation from Flywheel End | Counterclockwise |
| Flywheel and Flywheel Housing | SAE No. 0 |
| Flywheel Teeth | 136 |
| Weight - Dry | 4720.0 lb |
| Oil Change Interval | 750 hours |
| Ignition, Protection | Altronic III |
| Stroke | 6.0 in |
| Bore | 5.4 in |
| Cooling System | 20.0 gal (US) |
|---|---|
| Lube Oil System - Refill | 45.0 gal (US) |
Air Inlet System
- Air cleaner — single element with service indicator
Control System
- Governor — Woodward PSG mechanica
- Governor control — positive locking
Cooling System
- Thermostats and housing
- Jacket water pump
- Aftercooler water pump
- Aftercooler core
Exhaust System
- Watercooled exhaust manifolds
- Dry exhaust elbow
Flywheel & Flywheel Housing
- SAE No. 0 flywheel
- SAE No. 0 flywheel housing
- SAE standard rotation
Fuel System
- Gas pressure regulator
- Natural gas carburetor
Ignition System
- Digital ignition system
Instrumentation
- Service meter
Lube System
- Crankcase breather — top mounted
- Oil cooler
- Oil filter — RH
- Auxiliary oil reservoir
- Rear sump oil pan
- Oil filler in valve cover and dipstick — RH
Mounting System
- Engine supports
Protection System
- Shutoff
General
- Paint — Cat yellow
- Crankshaft vibration damper and drive pulleys
- Lifting eyes
