Diesel generator sets

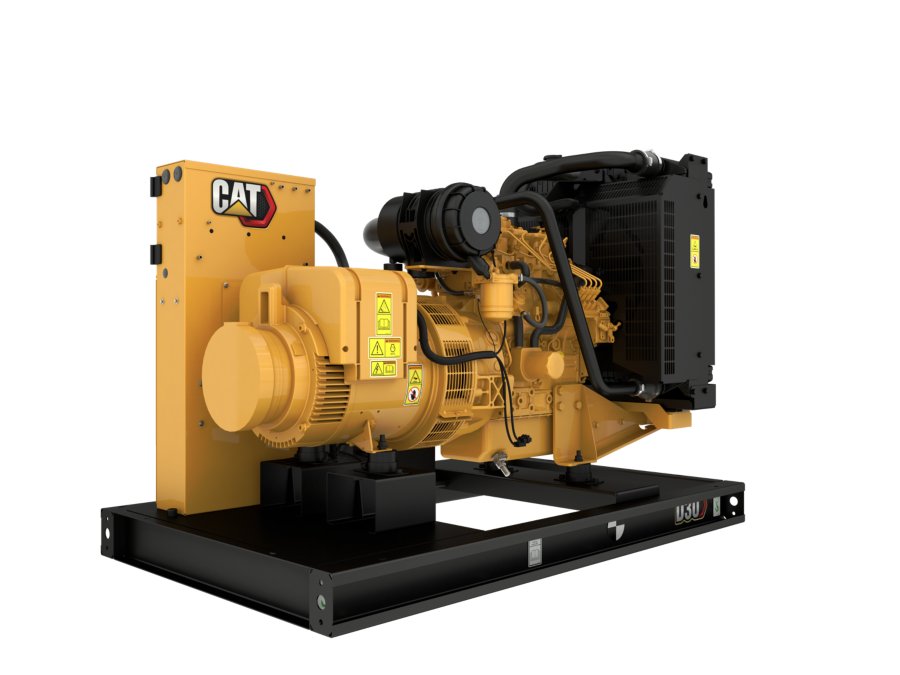

C2.2 | D30
Producing reliable power of 29.6 ekW at 60 Hz, our D30 diesel generator sets are designed to meet ISO 8528-5 transient response requirements. All D30 generator sets are EPA TIER 4I emissions compliant.
Request a Quote
Have questions? Call 800.768.4200
Cat C2.2 Engine
- Reliable, rugged, durable design
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Industry leading mechanical and electrical design
- High efficiency
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Image may not be a representative of actual product
Cooling System
- Designed to operate in standard ambient temperatures up to 40°C (104°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Full range of attachments
- IP23 Alternators
- Anti-vibration mounts
- UL142 compliant
- 24, 48 and 72 hour fuel tanks with option of skid base
- Factory fitted telematics
Footprint
- Compact design allows for improved packaging, resulting in the smallest genset footprint
Over 1000 hour Continuous Run Time
Remote Connectivity 24/7/365 Monitoring
Cat Connect option ensures your generator set is always ready to start and performing as expected
| Standby Rating | 29.6 ekW |
|---|---|
| Frequency | 60 Hz |
| Emissions/Fuel Strategy | U.S. EPA Tier 4i Certified |
| Voltage | 480/277, 240/120, 208/120, 600/346, 240/120 VAC |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Model | Cat® C2.2, In-line 4, 4-cycle diesel |
|---|---|
| Bore | 3.3 in |
| Stroke | 3.9 in |
| Compression Ratio | 23.3:1 |
| Aspiration | Turbocharged air to air charge cooling |
| Fuel System | Electronically actuated Mechanical Cassette type |
| Governor Type | Mechanical |
| Length - Maximum | 88.6 in |
|---|---|
| Width - Maximum | 41.3 in |
| Height - Maximum | 57.9 in |
| Dry Weight - Genset (maximum) | 2052 lb |
Engine
- Diesel Engine 2.2L, EPA TIER IV Interim
- Electrical system, 12 VDC
Exhaust System
- Dry exhaust manifolds
Fuel System
- Actuator with electronic governor
Control Panel
- GCCP 1.2. R220 / R221 / D350 voltage regulators
Telematics
- PL444 Product link 4G LTE telematics
Generators and Generator Attachments
- Anti-condensation Space heaters
- M-Frame
Starting / Charging System
- 12V Starting motors
General
- Operation and maintenance manuals
- Paint - Caterpillar yellow except rails are gloss black
- Parts book
Need installed dimensions with enclosure and tank? See Model Configurations
