Offshore drilling & production generator sets

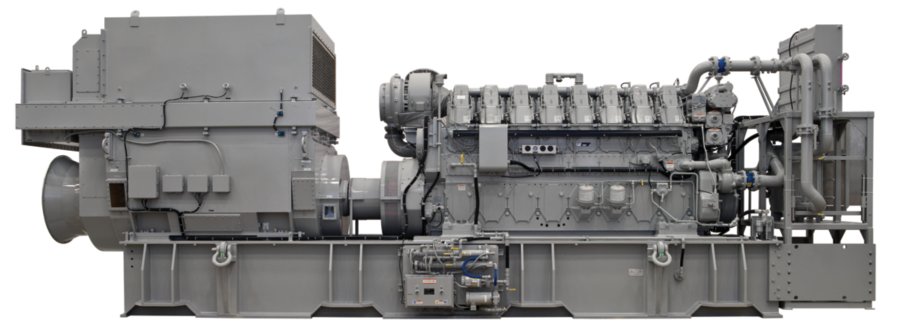

C280-8

The C280-8 generator set incorporates years of proven success of the 3600 engine with the latest technology in electronics. The result is a fully integrated solution that is ideal for offshore operations.Ideal applications for the C280-8 offshore generator set are main power on-board drilling and production vessels and platforms.Complete package offerings are MCS type-approved and compliant with IMO Tier II emissions standards, making integration of the Cat C280-12 generator set into the vessel a simplified operation. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. Cat C280-8 offshore generator set. Ratings: 2200-2600 @ 50/60 Hz (1000/900 rpm). IMO Tier II emissions compliant.

Request a Quote

Have questions? Call 800.768.4200

Product Design

Cat C280 engines incorporate more than 20 years of proven component reliability and durability from 3600 engines

Simplified Packaging Concept

Offshore drilling package provides single lift handling
Caterpillar warranty for all packaged components
Includes most ancillaries, ready-to-run package
Easy to handle and install, few shipped-loose parts

Custom Packaging

For any petroleum application, trust Caterpillar to meetyour project needs with custom factory generator setsand mechanical packages. Cat engines, generators,controls, radiators, and transmissions can be customdesigned and matched in collaboration with our localdealers to create unique solutions. Custom packagesare globally supported and are covered by a one-yearwarranty after startup.

Full Range of Attachments

Large variety of factory-installed engine attachmentsincreases application flexibility and reduces installationtime.Testing
- Every unit is full-load tested to ensure proper packageperformance
- Full range of factory tests and reports are availableincluding performance, torsional-vibration analysis, fuelconsumption, engine, and generator special tests

Testing

Every unit is full-load tested to ensure proper packageperformance
- Full range of factory tests and reports are availableincluding performance, torsional-vibration analysis, fuelconsumption, engine, and generator special tests

Product Support Offered Through the Global Cat Dealer Network

More than 2,200 dealer outletsCaterpillar factory-trained dealer technicians serviceevery aspect of your Cat engineCaterpillar parts and labor warrantyPreventive maintenance agreements available for repairbefore-failure optionsS•O•S^SM program matches your oil and coolant samplesagainst Caterpillar set standards to determine:
Internal engine component condition
Presence of unwanted fluids and combustionby-products
Site-specific oil change interval

Over 80 Years of Engine Manufacturing Experience

C280 engines incorporate over 20 years of provencomponent reliability and durability from 3600 engines
- Large field population in offshore applications providesproven performance, reliability, durability, andestablished worldwide product support network

Web Site

Visit www.cat.com/oilandgas to learn more.

Improved Fuel Efficiency

Electronic Unit Injection (EUI) fuel system providesoptimized combustion at any load
Lower specific fuel consumption at part load
Reduced transient smoke and emissions

Engine Specifications
Minimum Rating	3084.0 kV·A
Maximum Rating	3634.0 kV·A
Emissions	IMO Tier II/EPA Marine Tier 2
Displacement	9031.0 in³
Oil Change Interval	1000.0 h
Weight	108027.0 lb
Generator Set Control	Generator Monitoring System (GMS)
Aspiration	Turbocharged-Aftercooled
Stroke	11.8 in
Engine Control	Electronic ADEM™ A3
Fuel System	EUI
Bore	11.0 in

Dimensions
Length	320.5 in
Height	134.1 in
Width	91.6 in

Capacity for Liquids
Cooling System - Engine	140.0 gal (US)
Lube Oil System - Refill	289.0 gal (US)

Product Consist

The engine is a turbocharged, aftercooled, four-strokecycle-diesel, electronic unit injection engine with a280 mm (11 in) bore by 300 mm (11.8 in) stroke. SAEstandard rotation is counterclockwise as viewed from therear of engine flywheel.

Emissions Certifications

GL and CCS approved IMO certificate — includesstatement of compliance or Engine International AirPollution Prevention (EIAPP) certificate, supplied by theRecognized Organization (RO) where available, andtechnical file to be kept on board per IMO regulations.

Marine Certification Society type-approval

ABS, BV, CCS, DnV, GL, LRS
Spray shielding to meet SOLAS regulations for flammablefluids

European Certifications

Declaration of Incorporation for EU Machinery Safety
Directive and EU Low Voltage Safety Directive

Air Inlet System

Fresh water aftercooler, corrosion resistant coated (airside)
Air inlet shutoff
Turbocharger, rear-mounted, oil lubricated

Control System

Single Cat ADEM A3 electronic engine control module withelectronic unit injector fuel system, rigid wiring harness(10 amp 24V power required to drive electronic enginecontrol modules)

Cooling System

Gear-driven jacket water (JW) pump
Gear-driven separate-circuit aftercooler/oil cooler (AC/OC) pump
Engine coolant water drains

Exhaust System

Dry, gas tight exhaust manifold

Fuel System

Distillate fuel (requires viscosity ranging from 1.4 cStto 20 cSt at 38°C)
Fuel pump, gear-driven
Fuel transfer pump (mounted on left-hand side)
Duplex fuel filters, rear-engine-mounted
Electronically controlled unitinjectors

Lube system

Centrifugal oil filters with single shutoff, service-side enginemounted on cylinder block inspection covers (includesinstalled oil lines and single shutoff valve), filters centrifugebypass oil from the main lubricating oil pump (can be servicedwith the engine running)
Oil filler and dipstick
Oil pressure regulating valve
Dry engine-mounted sump system that gravity feeds intobase assembly integral sump
Engine-mounted duplex oil filter
Intermittent air prelube
Continuous electric prelube
Redundant prelube with continuous electric prelube andintermittent air prelube backup
Oil pan drain valves
Electric continuous prelube pump
Lube oil heater
Oil pump - gear drive
