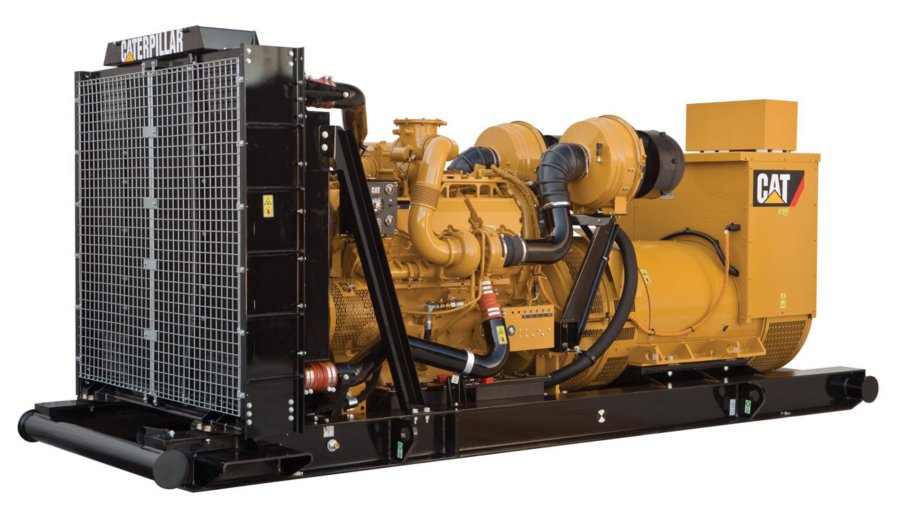

C27 ACERT Tier 2
Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C27 ACERT oilfield diesel generator set. Rating: 725 ekW (907 - 1035 kVA) @ 60 Hz (1800 rpm) meets U.S. EPA Tier 2 equivalent emission standards.
Product Support Offered Through the Global Cat Dealer Network
- More than 2,200 dealer outlets
- Cat factory-trained dealer technicians service every aspect of your Cat petroleum product
- Worldwide parts availability, service, and warranty
- Preventive maintenance agreements available for repairbefore- failure opti
Over 80 Years of Engine Manufacturing Experience
- Ownership of these manufacturing processes enables Caterpillar to produce high quality, dependable products.
Web Site
- For all your petroleum power requirements, visit www.cat.com/oilandgas.
| Maximum Rating | 725 ekW (907 - 1035 kVA) |
|---|---|
| Minimum Rating | 725 ekW (907 - 1035 kVA) |
| Emissions/Fuel Strategy | U.S. EPA Tier 2 |
| Aspiration | Turbocharged, aftercooled |
| Manifold Type | Dry |
| Bore | 5.4 in |
| Stroke | 6.0 in |
| Displacement | 1648.0 in³ |
| Engine Control and Protection | ADEM A4 |
| Generator Set Control | EMCP 4.2 |
| Generator | SR4B |
| Fuel System | MEUI |
| Frequency - Speed | 60 Hz (1800 rpm) |
| Fuel | Diesel |
|---|
| Length | 186.0 in |
|---|---|
| Width | 77.0 in |
| Height | 86.0 in |
| Weight | 20000.0 lb |
Air Inlet System
- Heavy-duty dual element air cleaner
- Service indicator
Cooling System
- Radiator package mounted (50° C)
- Side-by-side cores
- Coolant drain line with valve at edge of base
- Coolant level sight gauge
- Fan and belt guards
- Cat Extended Life Coolant
- Metal top and bottom tanks
Exhaust System
- Dry exhaust manifold
Fuel System
- Primary fuel filter
- Secondary fuel filter
- Fuel priming pump
- Fuel transfer pump
Generator
- SR4B
- Class H insulation
- Random wound
- IP23 protection
- Cat DVR
- Permanent magnet excitation
- Two-bearing, close coupled alignment
Controls
- ADEM A4 ECU
- EMCP 4.2 control panel
- Emergency stop pushbutton
Lube System
- Oil cooler
- High efficiency oil filter
- Oil drain valves
- Fumes disposal
- Gear-type lube oil pump
Mounting System
- Heavy-duty oilfield welded steel base (skiddable)
- Anti-vibration mounts
- Designed welded base for increased durability (C-channel design)
Starting/Charging System
- 24-volt starting motor
- 45-amp charging alternator
General
- Paint — Caterpillar yellow except rails and radiators (gloss black)
- Flywheel and flywheel housing — SAE No. 0
- Engine lifting eyes
Need installed dimensions with enclosure and tank? See Model Configurations
