Marine generator sets

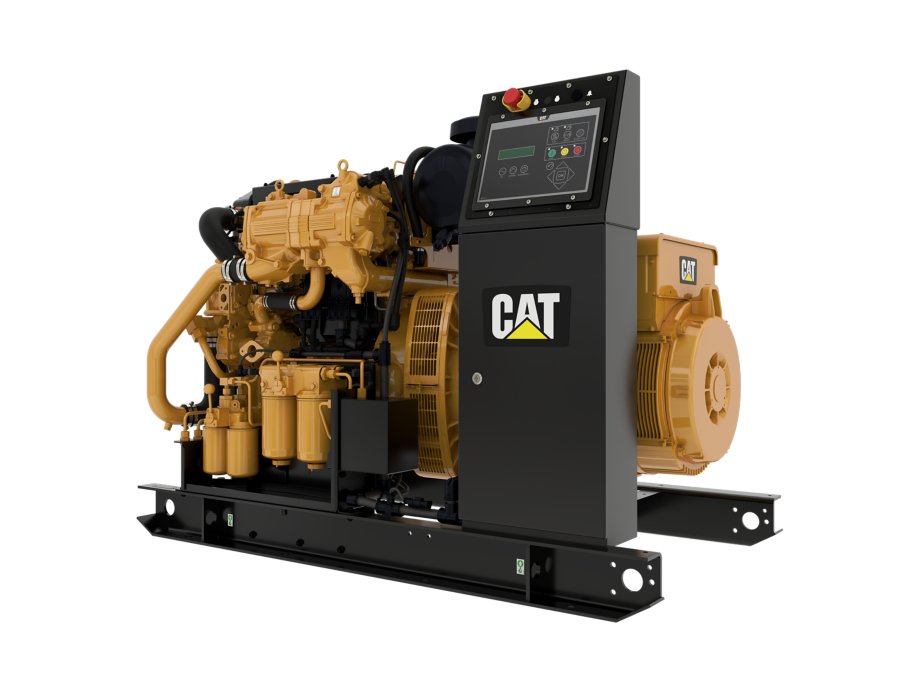

C4.4 (Electronic)
C4.4 (Electronic Control System)
Request a Quote
Have questions? Call 800.768.4200
| Power Range | 58.0R - 118 ekW |
|---|
| Frequency | 50 / 60 |
|---|
| Emissions | U.S. EPA Tier 3, EU Stage V |
|---|---|
| Aspiration | Turbocharged - Aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW)) |
| Rated Engine Speed | 1500/1800 rpm |
| Bore | 4.13 in |
| Stroke | 5.0 in |
| Displacement | 269 in³ |
| Governor | Electronic (A5 ECM) |
| Refill Capacity | Lube Oil System w/Oil filter change: 11 L 2.8 gal) |
| Oil Change Interval | 500 hours |
| Cooling | Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling |
| Flywheel Housing | SAE No. 03 with SAE 11.5 flywheel (126 teeth) |
| Configuration | In-line 4, 4-stroke-cycle diesel |
| Maximum Length | 80.2 in |
|---|---|
| Maximum Height | 78.7 in |
| Maximum Width | 38.3 in |
| Maximum Engine Dry Weight | 3389.0 lb |
Cooling System
- Gear-driven jacket-water and auxiliary water pumps
- Engine mounted air cleaner and expansion tank
- Integral plate-type oil cooler
Exhaust System
- Watercooled exhaust manifold and turbocharger
Fuel System
- Common Rail fuel system
- Electric fuel priming pump
Lube System
- Open crankcase ventilation system
Mounting System
- Engine mounted fuel and oil filter
- Engine mounted customer interface and control relays
Starting System
- 12 V or 24 V starter motor
- 12 V or 24 V starter motor
General
- Internal engine balancing shaft
- Self-tensioning multi-vee belt drive
- Download ↓C4.4 Marine Generator Set (Electronic Control System) Spec Sheet (58.0R - 118 ekW)
- Download ↓C4.4 GenSet (Electronic Control System) - Spec Sheet
- Download ↓C4.4 GenSet (Electronic Control System) - Spec Sheet
- Download ↓C4.4 GenSet (Electronic Control System) - Infographic
Need installed dimensions with enclosure and tank? See Model Configurations
