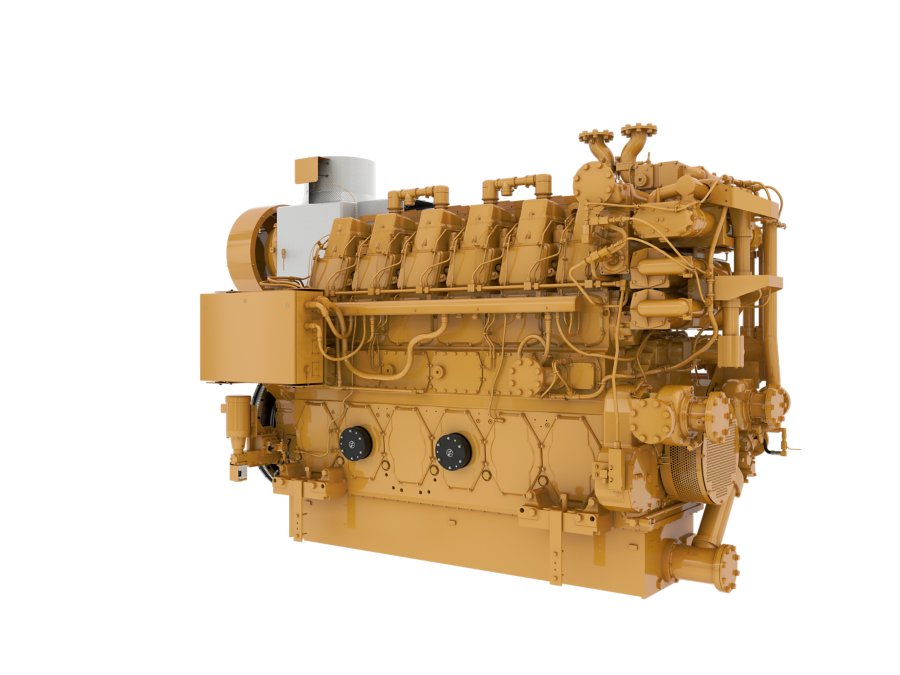

C280-6
The Cat® C280 commercial propulsion engine series is engineered for high‑utilization workboat applications where power, durability, and uptime matter most. Delivering up to 23% more power with increased durability, the C280 series combines high power density, proven heavy‑duty build, and long service intervals to help operators move more, pull harder, and stay working longer, day after day, compared to previous C280 models.
A3 Ecu
- CAN J1939 data link
- Waterproof connectors
- Maintenance-free
- Backup ECU for redundant governing
Electronic Advantages:
- Load feedback
- Programmable droop
- Adjustable gain
- Adjustable fuel/air ratio control
- Histograms of engine operation
- Cat Messenger display presents diagnostics and other engine parameters
Data Advantages through J1939 Link:
- Engine speed
- Boost pressure
- Throttle position
- Fuel consumption rate
- Inlet manifold temperature
- Diagnostic codes and events
- Configuration
- Desired engine speed
- Battery voltage
- Engine load
- Lifetime totals — engine hours, fuel burned, idle fuel, idle hours
- Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset
Customer Interface Panel
- Interfaces with standard Cat® Marine Monitoring System (PLC in Price List)
- Provides visual indication of ECU functionality
- Accepts 4 — 20 mA or PWM remote throttle speed input
- Marine alarm and protection
Electronic Unit Injectors
- • “Drop-in” installation
- No threaded fuel connections
- High pressure inside injector only
- Does not require double wall fuel lines or leak collection device
- Injector synchronization not required
Built for Extreme Conditions
Proven in the field: rigorous endurance testing; thermal, overspeed,cold starts, and emissions, alongside 350,000+ field hours. Heavy-duty design and marine-hardened electronics.
High Power Density
Delivering 5,420–8,000 bkW at 900–1000 rpm, the C280 series combines exceptional power density with flexible ratings and optimized torque at low speeds, maximizing performance for diverse marine propulsion demands.
Serviceability
Maximize uptime with extended service intervals with up to 1400 hours on select configurations. Supported by clear maintenance plans and backed by Caterpillar’s global network for fast parts, expert technicians, and lifecycle support worldwide.
| Power Range | 2320-2722 bhp (1730-2030 bkW) |
|---|
| Application | Workboat |
|---|---|
| Speed Range | 900-1000 rpm |
| Emissions | IMO II |
| Aspiration | TA |
| Bore | 11.0 in |
| Stroke | 11.8 in |
| Displacement | 6773.0 in³ |
| Rotation from Flywheel End | Counterclockwise or clockwise |
| Configuration | In-line 6, 4-Stroke-Cycle Diesel |
| Dry Weight | 34496.0 lb |
|---|---|
| Length | 158.0 in |
| Width | 71.0 in |
| Height | 108.0 in |
General
- LH or RH service connections
Air Inlet System
- Aftercooler, fresh water, corrosion resistant coated
- Crankcase breathers, top-mounted
- Single turbocharger, rear-mounted, engine oil lubricated
- Air inlet adapter - Straight / 90 degree / 35 degree
Control System
- Dual Caterpillar ADEM A4 Electronic Engine Control Modules
- Rigid Wiring Harness
- Aftercooler / oil cooler and jacket water pumps (gear driven)
Cooling System
- Engine coolant water drains
- Single Circuit / Separate Circuit Aftercooler
- Dry, gas tight, exhaust manifold
Exhaust System
- Dry, gas tight, exhaust manifold
- Turbo speed sensors - overspeed protection
- Exhaust manifold shielding, soft
Fuel System
- Fuel transfer pump, gear driven
- Electronically Controlled Unit Injectors
Instrumentation
- CAT Alarm & Protection System
Lube System
- Oil pump, gear driven
Lube Systems
- 2 element oil cooler, engine mounted
- Duplex centrifugal oil filter-engine mounted
- Wet sump
- Prelube pump - air / electric
Protection System
- Crankcase explosion relief valves
Protection Ssystem
- Mounted oil mist detector
Need installed dimensions with enclosure and tank? See Model Configurations
