Propulsion engines

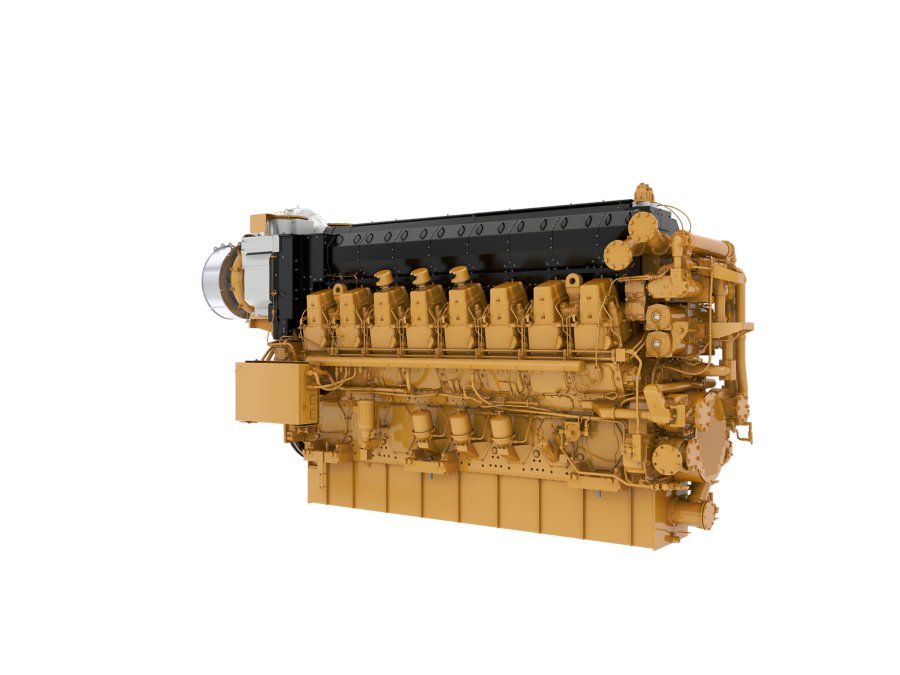

C280-16
Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the C280-16 engine line, now up to 6000 bkW. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.
Request a Quote
Have questions? Call 800.768.4200
A3 Ecu
- CAN J1939 data link
- Waterproof connectors
- Maintenance-free
- Backup ECU for redundant governing
- Updated A4 ECU for 6000 bkW
Electronic Advantages:
- Load feedback
- Programmable droop
- Adjustable gain
- Adjustable fuel/air ratio control
- Histograms of engine operation
- Cat Messenger display presents diagnostics and other engine parameters
Data Advantages through J1939 Link:
- Engine speed
- Boost pressure
- Throttle position
- Fuel consumption rate
- Inlet manifold temperature
- Diagnostic codes and events
- Configuration
- Desired engine speed
- Battery voltage
- Engine load
- Lifetime totals — engine hours, fuel burned, idle fuel, idle hours
- Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset
Customer Interface Panel
- Interfaces with standard Cat® Marine Monitoring System (PLC in Price List)
- Provides visual indication of ECU functionality
- Accepts 4 — 20 mA or PWM remote throttle speed input
- Marine alarm and protection
Electronic Unit Injectors
- • “Drop-in” installation
- No threaded fuel connections
- High pressure inside injector only
- Does not require double wall fuel lines or leak collection device
- Injector synchronization not required
| Power Range | 6169-8046 bhp (4600-6000 bkW) |
|---|
| Application | Workboat |
|---|---|
| Speed Range | 900-1000 rpm |
| Emissions | IMO II |
| Aspiration | TTA |
| Bore | 11.0 in |
| Stroke | 11.8 in |
| Displacement | 18062.0 in³ |
| Rotation from Flywheel End | Counterclockwise or clockwise |
| Configuration | Vee 16, 4-Stroke-Cycle Diesel |
| Minimum Dry Weight | 62832.0 lb |
|---|---|
| Minimum Length | 224.0 in |
| Maximum Length | 224.0 in |
| Minimum Height | 134.0 in |
| Maximum Height | 134.0 in |
| Minimum Width | 80.0 in |
| Maximum Width | 80.0 in |
General
- LH and RH service availability
Air Inlet System
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Dual turbochargers, rear-mounted, engine oil lubricated
- Breather, crankcase, top-mounted
- Air inlet adapter - Straight / 90 degree / 35 degree
Control System
- Dual Caterpillar ADEM A4 Electronic Engine Control Modules
- Rigid Wiring Harness
Cooling System
- Aftercooler / Oil cooler and jacket water gear driven pumps
- Engine coolant water drains
- Single Circuit / Separate Circuit Aftercooler
Exhaust System
- Dry exhaust manifold
- Turbo speed sensors - overspeed protection
Fuel System
- Fuel transfer pump, gear driven
- Electronically Controlled Unit Injectors
- Duplex Fuel filters
Instrumentation
- CAT Alarm & Protection System
Lube System
- Oil pump, gear driven
- 3 element oil cooler, engine mounted
- Duplex centrifugal oil filter, engine mounted
Lube Systems
- Oil pump, gear driven
- Wet sump
- Prelube pump - air / electric
- Crankcase explosion relief valves
Need installed dimensions with enclosure and tank? See Model Configurations
